Overview

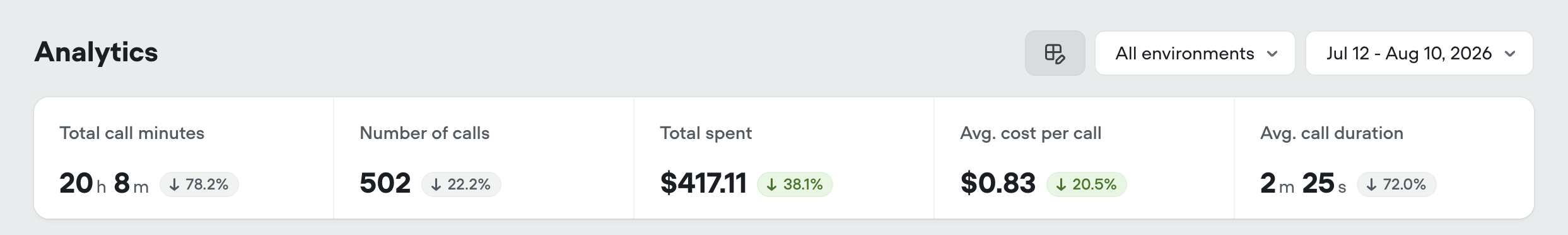

Analytics displays conversation outcomes, Evaluation scores, resource usage and spend for your project. Choose the dashboard cards to display, filter data by Environment and date, and open Evaluations or Transcripts to inspect individual conversations. Open Analytics in the project sidebar.
Examples of when to use Analytics
Use Analytics to review agent performance, investigate conversation results and track operating cost. For example:
- Build an operational dashboard: keep resolution, conversation volume and spending together for a regular review.
- Track your own quality criteria: add a custom Rating for how clearly the agent explains a policy, then investigate low-scoring conversations.
- Review a release: compare an Environment’s outcomes and workload over a consistent period.
- Review tool usage: see which tools, Playbooks and Knowledge documents were used during a period.
- Understand customer feedback: read survey comments alongside the ratings customers gave.
- Estimate business value: apply a documented value assumption to the selected outcome.
Analytics, Evaluations and Transcripts
How to use Analytics
Use the filters to select activity, configure the cards, then open individual results.
Choose a review scope
Choose the Environment and date range at the top right of Analytics. To review one release, select its Environment and version.
Build a useful view
Open Edit view, select the dashboard cards, arrange them within their groups and click Save.
Compare the movement
Select a headline metric to change the chart. Hover a point to read one time bucket; move away to return to the range summary.
Check the underlying evidence
Open a custom Evaluation from Quality, then open a scored conversation to read its reasoning and Transcript. The Results view remembers its own filters; set its dates and Environment for this review.
How Analytics measurements relate
Understand why totals, judged outcomes and customer responses can differ.
These measures use different populations:
Range rates use the whole range’s counts, rather than a simple average of daily percentages. Sessions without an Evaluation verdict are excluded from the rate.
Why are Analytics results missing or different?
Start with the symptom, then follow the matching scope, scoring or loading check.
- No conversations or calls: check the Environment, version and dates. Confirm a live session has ended, then reload Analytics. Internal Run tests are excluded.
- A custom metric is absent: check its supported Evaluation type and dashboard visibility. Add its card through Edit view and save the layout.
- Conversations exist but no outcome is scored: check automatic scoring and whether the Evaluation has completed. Enabling an Evaluation does not automatically score historical Transcripts; follow the historical-scoring workflow.
- Analytics and a detail view show different counts: compare their filters and judged populations. Evaluation results can retain their own scope, and survey counts include only submitted ratings.
- A card or page reports an error: use Try again on the failed card or page.
- An old aggregate has no Transcript to open: summary data can remain after its Transcript is deleted or expires.
Building your dashboard
Choose and arrange the cards that support your review.
An Analytics view is the set of cards you choose to display, arranged within Quality, Usage and Spend. Open Edit view at the top right to configure it.
Saved layout and review scope
- Saved layout: card selection and order are saved in the active version’s Analytics configuration and shared by people reviewing that version.
- Temporary choices: the selected headline metric, Tools tab and Spend tab are remembered separately in the browser session.
- Scoring: hiding an Evaluation card changes the dashboard; it does not disable the Evaluation’s automatic runs.
- Shared access: recipients of a review link still need access to the project. Copying a link does not create a public dashboard.
Choose and arrange dashboard cards
Select cards, arrange them within their groups and save the view.
Open Edit view
Click Edit view at the top right of Analytics.
Choose the cards and their order
Turn a card on or off. Use its drag handle to change its order within that group.
This example keeps Return policy clarity, Conversation efficiency and Customer effort visible alongside Spend for a custom-quality review, and turns the other dashboard cards off.
Save or discard the draft
Click Save to apply the configuration. Save and Reset are disabled while loading or saving.
To restore the standard selection and order, click Reset to default. This changes the draft in the open dialog; it still needs to be saved.
Closing the dialog without saving discards its draft changes.
Check the saved layout
Confirm the chosen cards appear. Reopen Edit view to check the selected cards and their order.
Share a review
Copy the review link
Set the Environment, version and dates, then click Copy link to analytics in the toolbar.
Check the destination
The URL preserves the selected scope and dates. Recipients need access to the project; the selected headline metric and Tools/Spend tabs remain browser-session choices.
Adding custom metrics
Bring your own Evaluation criteria into the dashboard.
Custom metrics bring your Evaluation criteria into Analytics. Define them in Evaluations, then choose which cards appear under Quality.
Supported metrics
Analytics supports these Evaluation metric types:
- Binary: measures a yes/no outcome.
- Rating: measures a numeric scale.
- Options: separates defined categories.
Text Evaluations do not become dashboard cards. The primary Resolution or Conversion measure has its own outcome card.
Scoring and card visibility
- Historical coverage: enabling an Evaluation does not backfill existing conversations; those need a batch Evaluation.
- Empty cards: no results are shown until the Evaluation has scored conversations within the selected period.
Read an Options distribution
The distribution uses the Evaluation’s included options:
- One category: click a category slice or row to open results filtered to that category.
- Broader results: open the card itself.
The Result filter in the destination identifies the selected category.
Add a custom metric
Define an Evaluation, collect results and show its card in Analytics.
Define and test the Evaluation
Open Evaluations and define an Evaluation with a name, supported Metric and Criteria. Use its test controls to score a Transcript.
Choose the conversations to score
Enable automatic runs for new conversations, or run a batch Evaluation on existing Transcripts.
Show the card in Analytics
Return to Analytics. If the card is missing, open Edit view, show the Evaluation under Quality and click Save.
Check the results
Open the card, then select a conversation result to read its score and reasoning.
Measure return-policy clarity
Follow one Rating from its criteria to a useful Analytics review.
The fictional retail project uses Return policy clarity, a Rating from 1 to 5. It asks whether the agent explained the return window and the next available action. It does not judge whether the customer qualifies for a refund.
Score how clearly the agent explained the return window
and the next available action.
Use only evidence from the conversation.
Minimum (1): No usable explanation of the policy or next step.
Maximum (5): A clear return window and an appropriate next action.Test these criteria on a Transcript that explains the return window but omits the next action. Its reasoning should identify the missing next action. Then show the Rating in Analytics to review its average and individual results. These criteria are illustrative.
Tracking outcomes
Measure resolution or conversion against the agent’s selected objective.
The project objective determines whether Analytics displays Resolution or Conversion as its primary outcome.
- Resolution: tracks whether conversations reach a resolved outcome.
- Conversion: tracks the outcome defined for the agent, such as completing a qualified request.
Choose the project objective
When the KPI card asks you to choose an outcome, select Resolution or Conversion. This configures the project’s objective and its corresponding system Evaluation. To change an existing objective, review the agent’s Objective in project settings.
Resolution scoring
- Scoring off: if the Resolution card offers Turn on, click it to enable automatic scoring for new conversations. Showing the card in Edit view alone does not turn scoring on.
- Historical scoring: use batch Evaluations to score existing Transcripts with new criteria.
Define a conversion
Set the success criteria used to score conversions.
Open the definition
Select the Conversion headline metric and use Define to describe the outcome.
Save or cancel the draft
Click Save to update the Conversion criteria, or Cancel to discard the draft.
Check the saved definition
Reopen Define to check the saved criteria. Use Evaluations to test them against a Transcript.
Filtering Analytics
Focus the dashboard on an Environment, version and time period.
Filters control which activity is summarized in the dashboard’s totals, trends and cards. Open Analytics and use the Environment and date controls at the top right.
Interpreting filtered results
- Live activity: conversation and call totals include ended live sessions. Internal Run tests are excluded.
- Dates and timezone: sessions are assigned to their start date in the viewer’s timezone. The range includes the full start and end dates. A session that started before the range is excluded, even if it ended within it.
- Updated results: reload Analytics after a live session ends or an Evaluation completes to request fresh results.
- Detail-view filters: Evaluation results and Transcripts retain their own filters independently of Analytics.
Choose an Environment and version
Review all activity, one Environment or a specific version.
Open the Environment filter
Click All environments, or the currently selected Environment, at the top right of Analytics.
Choose the activity to include
- Across the project: select All environments.
- One Environment: select an Environment and leave All versions selected.
- One version: select an Environment, then choose the specific version to review.
Apply and check the selection
Click Apply to update the dashboard. Confirm the Environment and version shown in the filter’s label before reading the results.
For projects with the fixed Development, Staging and Production Environments, choose the Environment directly from the menu. This menu applies the Environment directly, without a version picker.
Choose a review period
Use a preset or choose start and end dates in the calendar.
Open the date filter
Click the displayed date range beside the Environment filter.
Choose the dates
- Preset: select Last 7 days or another preset. The dates apply immediately and the picker closes.
- Custom range: select the start and end dates in the calendar. Use its month controls to reach dates outside the visible month. The range updates as you select dates; there is no separate Apply step.
Check the review period
Confirm the start and end dates displayed in the date control before comparing the dashboard’s results.
Comparing trends
Compare performance with the preceding period and relevant releases.
The selected headline metric controls the main chart. Its summary compares the selected range with the preceding period.
Read chart values
- Choose the metric: select a headline metric to change the chart.
- Inspect a bucket: hover or focus a chart point to read its value. Move away to return to the range summary.
- Read the change: comparison indicators show relative percentage change:
(current − previous) ÷ previous × 100for nonnegative metrics. If the preceding value is zero or unavailable, a relative change is not shown. - Reconcile the summary: range rates and unique-user totals are calculated for the whole range. Averaging daily rates or adding daily unique users can give a different answer.
Interpret release markers
Hover or focus a release marker to inspect the release.
Calculate a rate change
Distinguish relative percentage change from percentage points.
Using illustrative results with the same Resolution criteria:
- Previous period: 600 resolved sessions out of 1,000 judged sessions = 60%.
- Selected period: 900 resolved sessions out of 1,200 judged sessions = 75%.
- Relative change:
(75 − 60) ÷ 60 × 100= 25%, displayed as Up 25%. - Percentage-point difference:
75 − 60= 15 percentage points.
Investigating quality
Inspect the conversations and judgments behind an aggregate score.
A custom Evaluation’s Results combines a summary with individual scored conversations. Open it from Quality, or use All evaluations to move to the full Evaluation area.
Check the result population
- Independent scope: Results remembers its own date, Environment and Result filters.
- Category entry: clicking an Options category sets the Result filter to that category.
- Reset: click Clear filters, then select the dates and Environment for this investigation.
Check missing or failed results
- No judgments: an outcome rate is blank when no sessions in the selected scope have a verdict. Check scoring and the selected dates.
- Card error: click Try again on the failed card to reload it.
- Page error: use the page’s Try again button when the dashboard fails to load.
For the built-in outcome definitions, see Resolution categories.
Continue in Evaluations or Transcripts
- Evaluations: edit or test the criteria shown in the Prompt tab.
- Transcripts: investigate the conversation and its execution details.
Investigate a scored conversation
Trace an aggregate score back to its judgment, reasoning and Transcript.
Open the Evaluation results
Open a custom Evaluation from Quality to inspect its Results. Confirm the date, Environment and Result filters for the investigation.
Inspect individual results
Use the results table’s sorting and navigation controls to inspect additional results. Open a conversation result to read its score and reasoning.
Read the conversation and criteria
Read the Transcript alongside the result’s reasoning. Open Prompt to inspect the criteria, or edit and test the Evaluation.
Customer feedback
Review customer survey ratings and written feedback.
Customer survey CSAT lets customers rate chat conversations from 1 to 5 stars. It is separate from a satisfaction score generated by an Evaluation.
Enable the customer survey
To enable a disabled survey, click Turn on on the CSAT card. This enables the survey in the chat widget settings.
Interpret ratings and comments
- Response coverage: the average uses submitted ratings. The answered-survey percentage compares submitted ratings with surveys shown.
- Search scope: search matches only comments loaded in the dialog. Clear the search, scroll to load older comments, then search again.
- Written feedback: a customer can submit a star rating without a comment.
Read and filter customer feedback
Find comments by rating or search, then inspect their conversations.
Open the comments
Use Read comments to open written feedback. To start with one rating, select its star-distribution row.
Filter and search
In the dialog, choose a star filter or All. Search the comments and clear the search to broaden the list again. More comments load as you scroll.
Read the conversation
Open a comment to review its conversation.
Return to Analytics
Close the dialog to return to the dashboard.
Usage and resources
Investigate conversation activity and the resources the agent uses.
The Usage group shows activity and resource rankings for the selected review scope.
Read activity and resource rankings
- Conversation activity: Unique users counts distinct user identifiers; User messages counts messages. Voice agents also show call minutes and average call duration.
- Resource activity: Playbooks, Workflows, tools and Knowledge documents show which resources contributed to that activity.
- Deleted resources: a deleted resource cannot be opened from a historical ranking.
Understand response latency
Average latency is shown in milliseconds. The range average is weighted by message count; call duration is measured separately.
Find and inspect a resource
Use resource rankings to open the relevant configuration or document.
Choose a resource ranking
Use the cards for Playbooks, Workflows, tools or Knowledge. In Tools, switch between All, Integrations, APIs, Functions and MCPs. Scroll a populated ranking to see additional returned rows.
Check the current resource
The row opens the resource’s current configuration. Changes made after the selected Analytics period are reflected in that editor.
Spend analysis
Examine spending by category, model and conversation volume.
The Spend group breaks down operating cost by category and model for the selected Environment and period.
Available tabs and units
- Breakdowns: By category shows the spending mix; LLM shows the model breakdown. Provider breakdowns appear for text-to-speech and speech-to-text spending in the selected range.
- Display unit: the account determines whether operating spend appears in credits or dollars. This is not a dashboard currency switch.
Read total and per-conversation cost
- Total spend: the sum of operating spend in the selected range.
- Per-conversation spend: total spend divided by the number of conversations or calls in the range.
- Other models: combines smaller contributors into one group.
Explore a spend breakdown
Choose a breakdown, inspect its series and read individual chart values.
Choose the breakdown
In Spend, choose By category for the spending mix or LLM for the model breakdown. Use the speech-provider tabs when the selected activity includes the relevant text-to-speech or speech-to-text spending.
Inspect or toggle a series
Hover a legend entry to emphasize its series. Select an entry to hide or show that series in the chart; at least one remains visible. This changes the chart display, not the underlying usage.
Read a bucket or the range summary
Inspect a chart bucket to read its value, then leave the chart to return to the range summary. Check the active tab and visible series when interpreting the result.
Estimated value
Apply your own value assumptions to resolutions or conversions.
The Saved metric uses your value-per-resolution assumption. For Conversion, Revenue uses the value assigned to one conversion.
Interpret the estimate
- Configured value: the dollar amount you enter is an assumption about one resolution or conversion, not measured revenue or staffing cost.
- Calculation: for each chart bucket, Analytics multiplies conversation volume by the Resolution or Conversion rate, then by your dollar assumption. It adds those bucket estimates for the selected range.
- Outcome coverage: the rate uses judged sessions, while the estimate applies that rate to conversation volume. With incomplete scoring, the estimate can differ from multiplying only positively judged sessions by your assumption.
- Operating-spend currency: editing a business-value assumption does not change the account’s operating-spend currency.
Set or change a value estimate
Enter an assumption for one resolution or conversion, then check the saved value.
Open the value control
For Saved, select Add estimate in an unset metric to enter the value for one resolution. For Conversion, Revenue uses Add a value for the value assigned to one conversion. To change an existing value, select Saved or Revenue, then use Edit.
Enter a positive dollar value
Enter a dollar amount greater than zero.
Save or cancel the draft
Press Enter or leave the input to save. Escape cancels the draft.
Calculate an estimated value
See how conversation volume, scoring coverage and a dollar assumption affect Saved.
Using illustrative data for one chart bucket:
- Volume: 100 conversations.
- Resolution scoring: 8 of 10 judged conversations resolved, giving an 80% rate.
- Value assumption: $5 per resolution, entered by the team.
- Estimated value:
100 × 0.8 × $5= $400.
The estimate applies the judged rate to all 100 conversations. It does not calculate 8 × $5 from only the positively judged sessions. Operating spend is displayed separately and is not subtracted from Saved. The $5 assumption is an example, not a Voiceflow default.
