Overview

Once a phone number is connected to your project, incoming calls are automatically routed to your agent. The same applies to calls your own phone system sends to a SIP connection.

How it works

When someone calls your connected phone number, Voiceflow routes the call based on how the number is configured:

When someone calls your connected phone number, Voiceflow routes the call based on how the number is configured:

  • Assigned to an environment: every call goes to that environment, using either its Published (live) version or its Draft, depending on which you picked when assigning.
  • No fixed Environment: the number remains assigned to its Voice agent, and calls follow the Published traffic split configured in Settings → Environments, just like chat sessions and API conversations.

To change a number’s assignment, click the environment label next to the number in the Phone numbers tab. See Routing calls to an environment for the full flow.

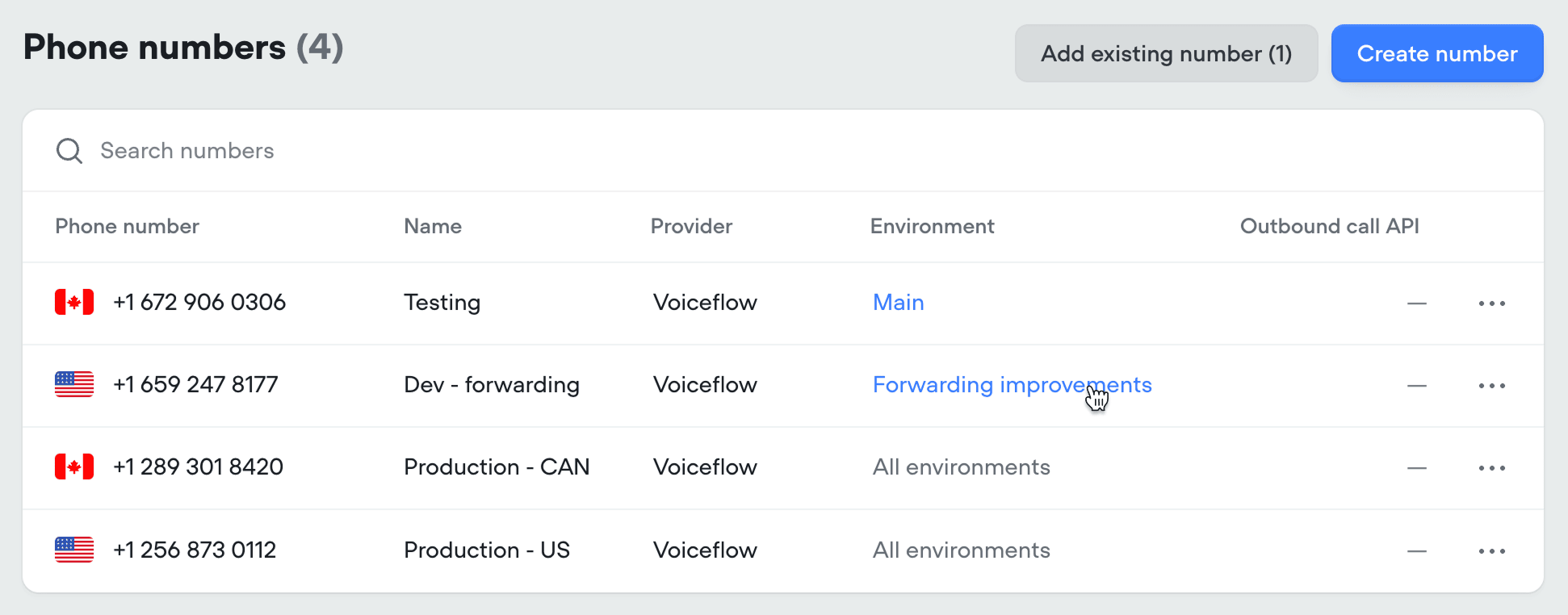

Phone numbers table with an environment selector
Choose the environment that answers calls to each number.

Caller identification

When a call comes in, the caller’s phone number is automatically set as the user_id variable.

When a call comes in, the caller’s phone number is automatically set as the user_id variable. The caller number is separate from the runtime identity used to retain variables. In Behaviour → Session & timeout, Remember callers across calls selects phone-number identity or a new identity per call. See Returning callers. A presented phone number does not authenticate a customer.

For calls that arrive over a SIP connection, the runtime uses the original caller identity forwarded by the SIP proxy, reduced to the SIP address’s user part. Withheld or anonymous callers receive a unique anonymous- ID per call. See Caller identity and context.

Testing draft changes by phone

While you’re working on a change, point a non-production phone number at the environment’s draft version.

While you’re working on a change, point a non-production phone number at the environment’s draft version. Calls to that number use your unpublished work, so you can dial in and verify the change yourself before publishing. A phone number that real callers use should never be pointed at a draft.

Testing changes with real callers

When you want to validate a change against Main using real call data, use a traffic split.

When you want to validate a change against Main using real call data, use a traffic split. Clone Main, make and publish your change in the new environment, then route a small percentage of phone traffic to it. Compare the results in Analytics and Transcripts, and once you’re confident, merge the environment back into Main.
