Use the MCP step to execute a saved MCP tool in a workflow. The tool connects to an external service through the Model Context Protocol.

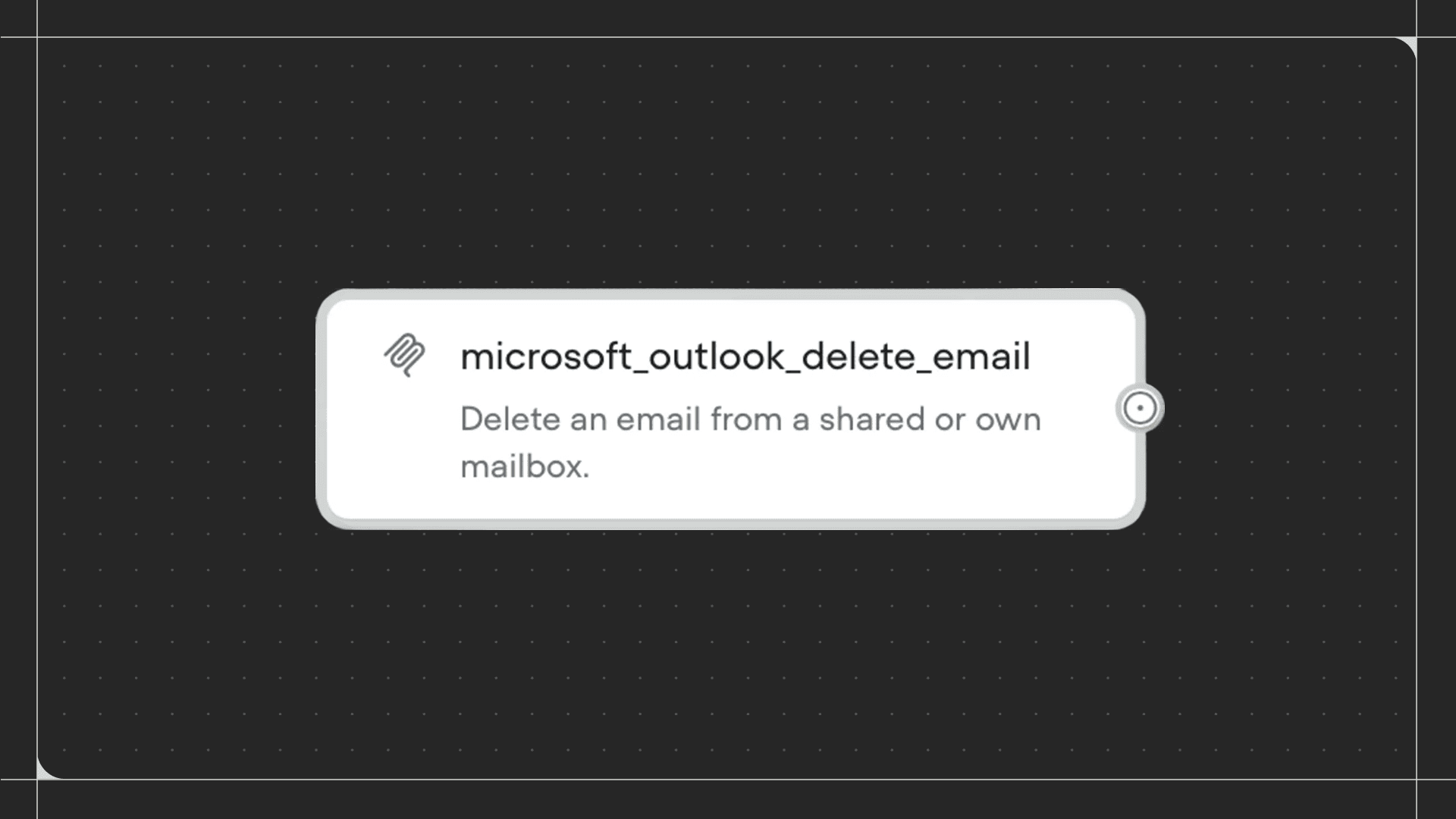

Using the MCP step

Drag the MCP step onto the canvas and connect it to the step before it. Click on the step to select which MCP tool to run.

Select an existing MCP tool from the dropdown, or create a new one by clicking New MCP tool. Once selected, you’ll see the input variables that the tool requires.

Configuration

  • Input variables: Provide values for each required input. Enter specific text, numbers, or use variables from your workflow. Each input variable has a description explaining what information it needs.
  • Capture response: Optionally save the tool’s response to a variable. If the response contains structured data (like JSON), you can specify an object path to extract specific information (eg: data.user.email to get just the email from a larger response object).

How it behaves

The MCP step runs the selected tool at that point in the workflow. Its required inputs come from the tool exposed by the connected server. Capture response lets you keep the entire result or select a value using an object path.

Example

Suppose your connected server exposes an order lookup tool. Map the tool’s order input to your agent’s order_id variable. First run the tool and inspect its result; if it returns an object such as the example below, capture data.order.status into an order_status variable.

This is an illustrative server response, not a built-in Voiceflow tool contract. Use the field names and response shape from your own server, then confirm the saved value is shipped before displaying it.
